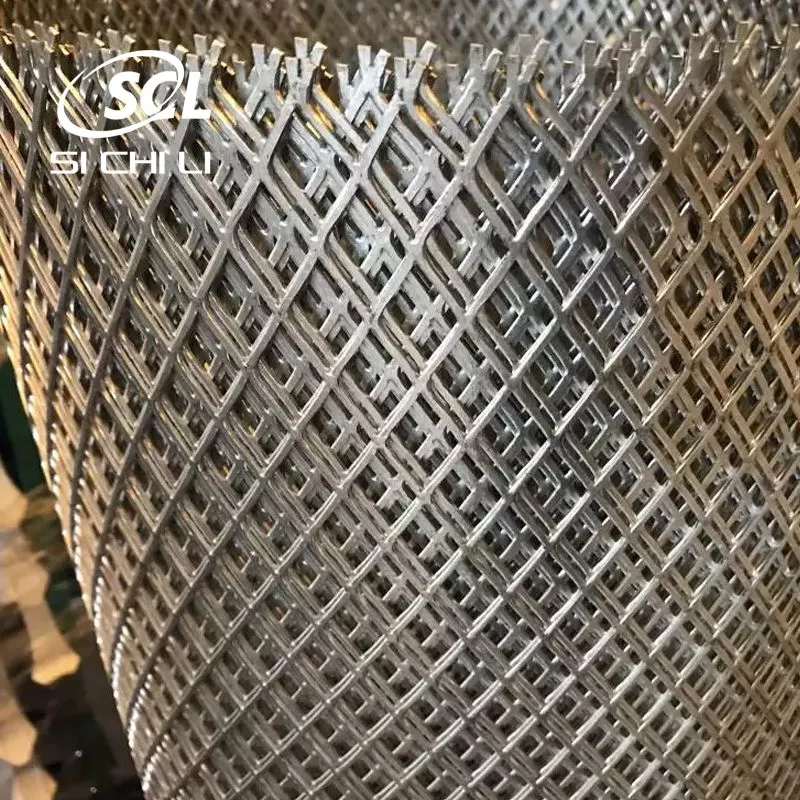

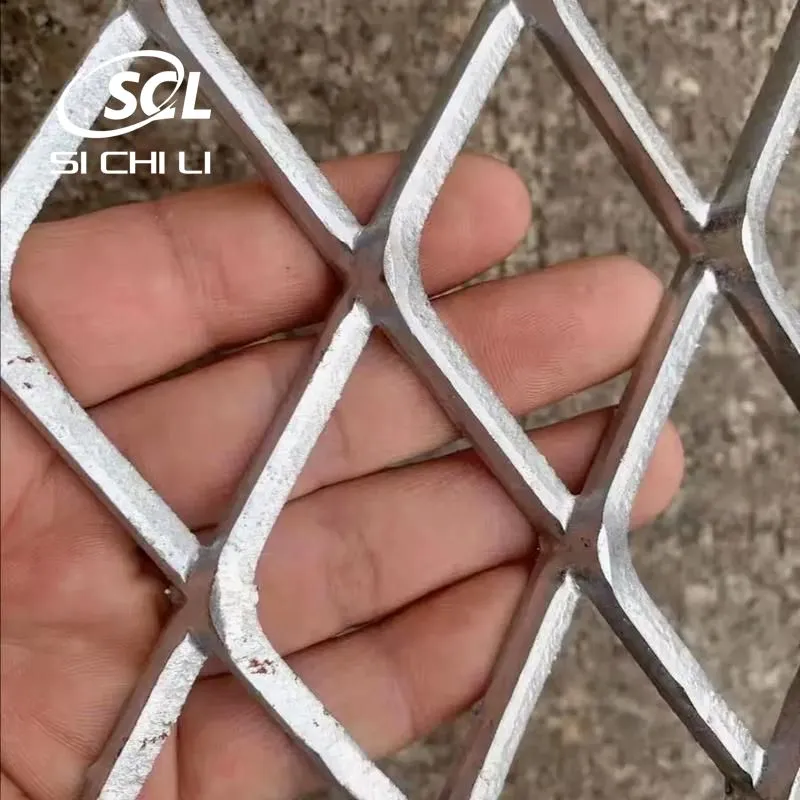

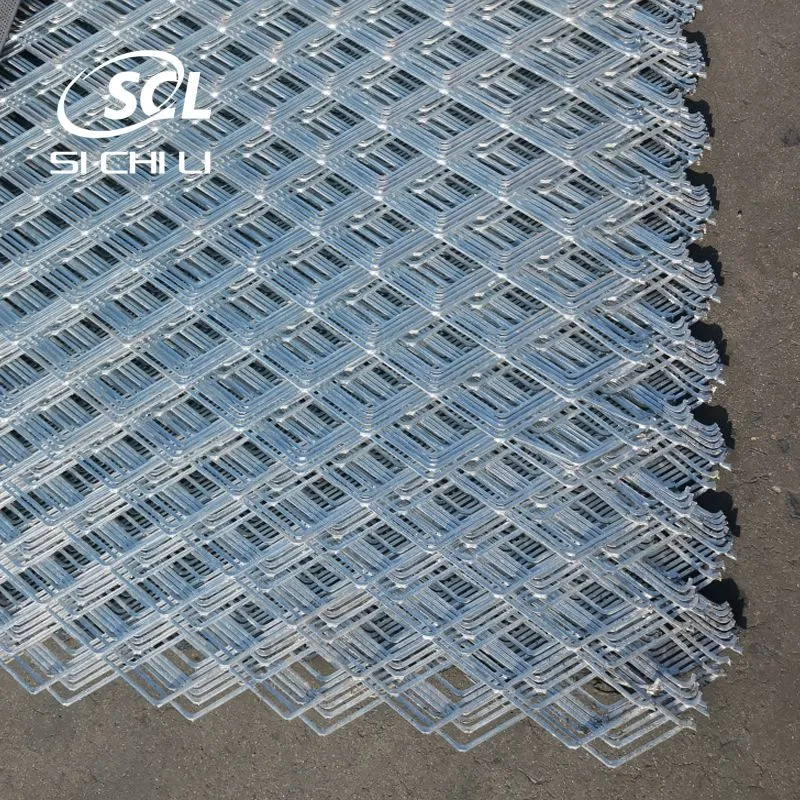

Galvanized Steel Mesh

Galvanized steel mesh is used for filter elements, medicine, papermaking, filtration, breeding, battery mesh, packaging mesh, mechanical facility protection, handicraft manufacturing, indoor ceiling, high-definition speaker mesh, decoration, child seats, baskets, baskets and road protection, tanker foot nets, heavy machinery and boilers, oil mines, locomotives, 10,000-ton ships, etc. Working platforms, escalators, walkways. It can also be used as reinforcement in the construction industry, roads, and bridges.

Galvanized steel mesh is divided into electro-galvanized steel mesh and hot-dip galvanized steel mesh according to the amount of galvanizing.

Electro-galvanized steel mesh is to immerse the steel mesh in electrolyte. After half an hour of electrolysis, a uniform, dense, and well-bonded galvanized layer is formed on the surface of the steel mesh with a thickness of about 2 microns. Electro-galvanized steel mesh products are suitable for indoor use, avoiding direct sunlight or rain.

Production process of electrogalvanized steel mesh: chemical degreasing of steel mesh → hot water washing → water washing → electrolytic degreasing → hot water washing → water washing → strong corrosion → water washing → electrogalvanized iron alloy → water washing → water washing → polishing → passivation → water washing → drying.

Hot-dip galvanized steel mesh is to immerse the steel mesh in a liquid zinc solution of up to 500 degrees for two minutes, so that a zinc layer of about 10 microns is attached to the surface of the steel mesh, and the surface is smooth, shiny and silvery white. Hot-dip galvanized steel mesh has a good anti-rust effect and will not rust for up to 50 years of outdoor use.

Production process of hot-dip galvanized steel mesh: finished steel mesh pickling-water washing-adding auxiliary plating solution-drying-hanging plating-cooling-chemical-cleaning-polishing-hot-dip galvanizing completion.

Material: cold plate, hot plate, galvanized plate

Aperture (mm): long pitch: 4-150 short pitch: 2-60

Hole shape: diamond, hexagon, turtle

Plate thickness (mm): 0.3-8.0

Process: The metal plate mesh with mesh shape is formed by punching and stretching by a precision steel plate punching and shearing machine

Application: used for filter element, medicine, papermaking, filtration, breeding, battery net, packaging net, mechanical facility protection, handicraft manufacturing, indoor ceiling, high-definition speaker net, decoration, children's seat, basket, basket and road protection, oil tanker foot net, heavy machinery and boiler, oil mine, locomotive, 10,000-ton ship, etc. Working platform, escalator, walkway. It can also be used as steel bars in construction, roads and bridges.
